Movable Pool Floor

The moveable pool floor allows you to vary the depth of the pool to adapt it to the various aquatic disciplines. For each activity, a specific water depth can be defined, to allow each operation to be carried out safely until reaching the zero level in the case of closure and possible transformation into dry land.

ISI produces both movable bottoms permitted by the UNI EN 13451-11 standard to satisfy the different needs of the systems:

• Type 1: Float with submerged tie rod movement

• Type 2: Mechanical with movement even in the absence of water

Both types are designed and built in compliance with all FINA/WORLD AQUATICS and accident prevention regulations, also being able to adapt to the specifications required by the project, for example to cover non-standard activities and/or increased capacities.

Common features:

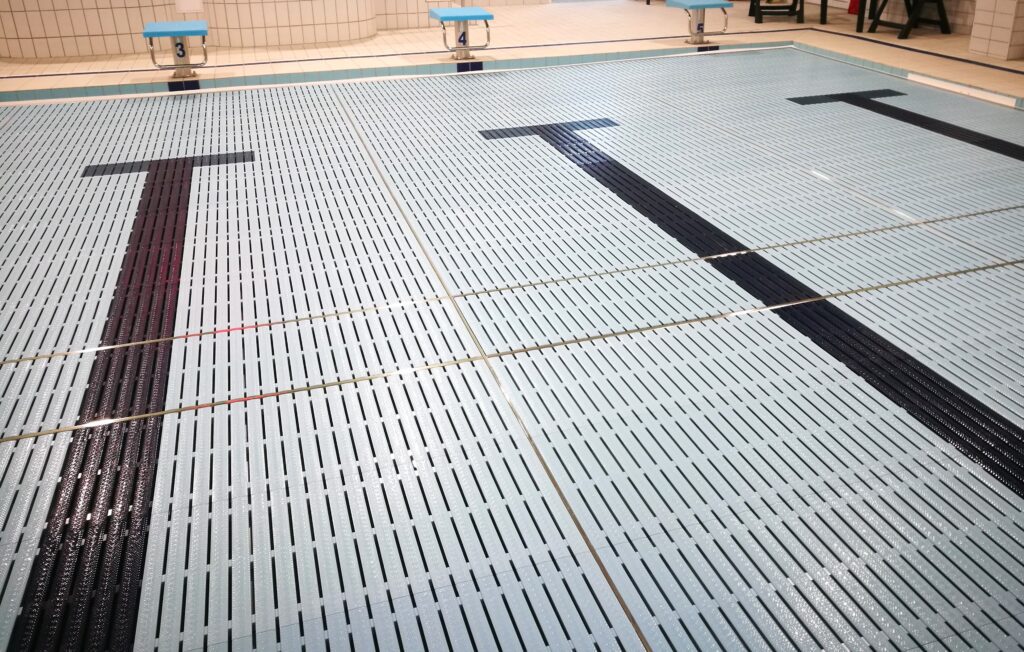

• Perforated flooring to allow water circulation and not interfere with filtration systems, in accordance with current legislation.
  Paneling available in solid polypropylene or in grilled polypropylene with different technical characteristics;

• Movement times according to reference standards, maximum speed 500 mm/min;

• Full control with PLC and configurable touch screen on the edge of the pool inserted in an IP56 stainless steel box, English language plus a second configurable one of your choice;

• Ethernet connection for remote control, movement log etc;

• Poolside LED screens with stainless steel structure, configurable to display the height or movement status at any time as well as no-diving signaling;

• Possibility of bringing the flooring above the water level in order to close the pool and/or limit heat loss at night;

• Presence of inspection and cleaning hatches as required by law.

We remind you that all our production uses certified manufacturing and welding in accordance with UNI EN ISO 3834-2.
